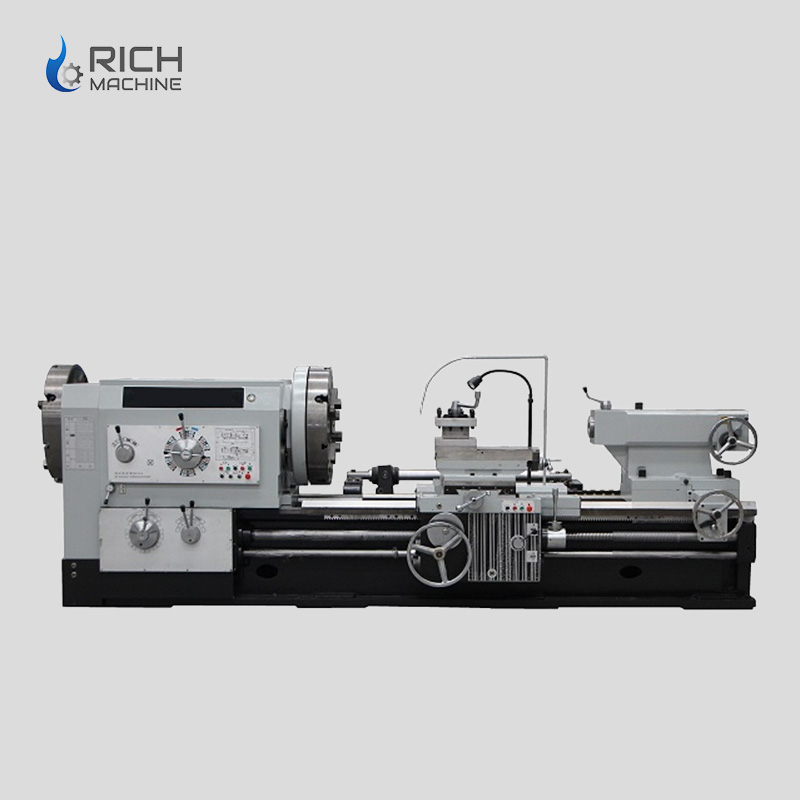

RICH Pipe Thread Lathe Machine JR-1332

Main Features:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equipped with taper guide bar device this enables the machine to process taper threads;

Category: CNC Pipe Threading Lathe

Description
Reviews (0)

Description

ITEMS		UNIT	JR-1332
Capacity	Swing over bed	mm	Φ1000
	Swing over cross slide	mm	Φ610
	Distance between centers	mm	1500/2000/3000/4000/5000/6000
	Pipe threading range	mm	Φ190-320
	Width of bed way	mm	755
	Max. load capacity	T	6
Spindle	Spindle bore	mm	Φ330
	Spindle speed range	rpm	9 steps/7.5-280
	Chuck size	mm	Φ780
	Chuck type	–	4-jaw electric
Turret	Turret type	–	Manual 4 position
	Tool shank size	mm	45×45
Carriage	X axis travel	mm	520
	Z axis travel	mm	1350/1850/2850/3850/4850/5850
	X axis feed grade/range	mm/r	32/0.05-0.75
	Z axis feed grade/range	mm/r	32/0.1-1.5
	X axis rapid traverse speed	mm/min	1870
	Z axis rapid traverse speed	mm/min	3740
	Metric thread grade/range	mm	23/1-15
	Inch thread grade/range	T.P.I.	22/28-2
Tailstock	Tailstock quill diameter	mm	Φ160
	Tailstock quill taper	–	MT6
	Tailstock quill travel	mm	300
Motors	Main spindle motor	kW	22
	Rapid traverse motor	kW	1.5
	Coolant pump motor	kW	0.125
Dimensions	Width x Height	mm	2100×1650
	Length	mm	4800/5300/6300/7300/8300/9300
Weight	Net weight	T	11.0/11.5/12.5/13.5/14.5/15.5
