Main Features:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equipped with taper guide bar device this enables the machine to process taper threads;

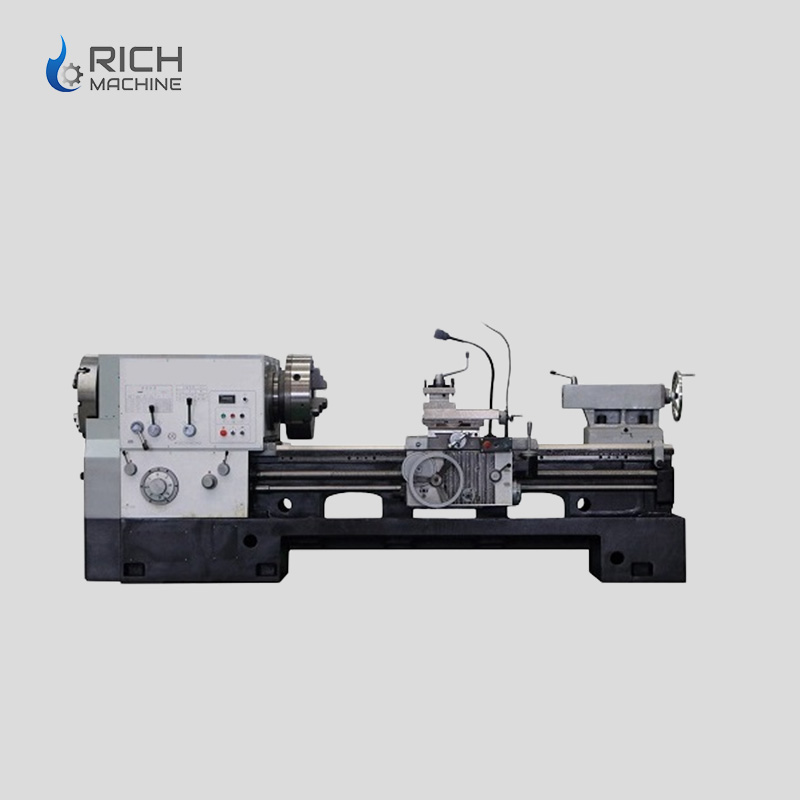

RICH Pipe Thread Lathe Machine JR-1319C
Description
Main Features:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to realize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Equipped with taper guide bar device this enables the machine to process taper threads;
| ITEMS | UNIT | 1319C | ||
|
Capacity |
Swing over bed | mm | Φ630 | Φ800 |
| Swing over cross slide | mm | Φ340 | Φ520 | |
| Distance between centers | mm | 1500/2000/3000/4000/5000/6000 | ||
| Pipe threading range | mm | Φ50-193 | ||
| Width of bed way | mm | 550 | ||
| Max. load capacity | T | 3 | ||
|
Spindle |
Spindle bore | mm | Φ205 | |
| Spindle speed range | rpm | 4 steps/20-550 | ||
| Chuck size | mm | Φ520 | ||
| Chuck type | – | 4-jaw manual | ||
| Turret | Turret type | – | Manual 4 position | |
| Tool shank size | mm | 32×32 | ||
|
Carriage |
X axis travel | mm | 320 | 420 |
| Z axis travel | mm | 1350/1850/2850/3850/4850/5850 | ||
| X axis feed grade/range | mm/r | 22/0.02-0.45 | ||
| Z axis feed grade/range | mm/r | 26/0.07-1.33 | ||
| X axis rapid traverse speed | mm/min | 2300 | ||
| Z axis rapid traverse speed | mm/min | 4000 | ||
| Metric thread grade/range | mm | 1-15 | ||
| Inch thread grade/range | T.P.I. | 14-1 | ||
|
Tailstock |
Tailstock quill diameter | mm | Φ100 | |
| Tailstock quill taper | – | MT5 | ||
| Tailstock quill travel | mm | 250 | ||
| Motors | Main spindle motor | kW | 11 | |
| Rapid traverse motor | kW | 0.3 | ||
| Coolant pump motor | kW | 0.125 | ||
| Dimensions | Width x Height | mm | 1550×1550 | |
| Length | mm | 3700/4200/5200/6200/7200/8200 | ||
| Weight | Net weight | T | 4.3/4.7/5.5/6.3/7.1/7.9 | |
