RICH CNC Lathe Machine JR-40/40T

Description

■ Super compact structure, big inside space, modern appearance
■ Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand.
■ Adopt 30°integral slant bed design(structure similar as JAPAN TAKISAWA 106), high rigidity, good machining flexibility,easy for chip conveying.
■ Adopt modularization design, has strong extended function, easy for various especial configuration choice, such as tool setter, parts catcher, robot etc.
■ Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability.
■ Base adopt multilayer strengthening rib, ensure bed’s strength and stability
■ Frame adopt oil-coolant separation design, adopt independent coolant tank
■ Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
■ Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity, can realize μ class precise turning.
■ Adopt high precision wide linear guideway, high rigidity and long using lifespan, fast moving speed, good accuracy holding, suitable for heavy loading and precise machining
■ mount energy-storage tank,reduce pressure fluctuation during tool change
■ Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity

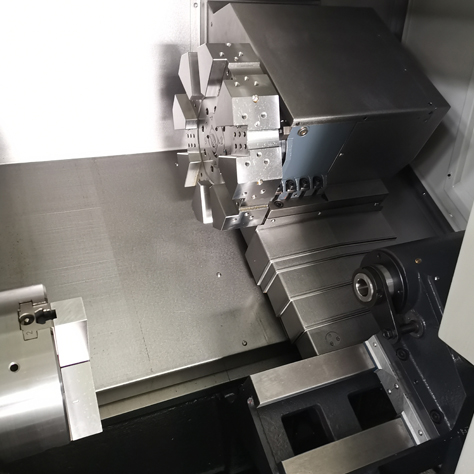

■ JR-40: 8T/12T Hydraulic-servo tool turret

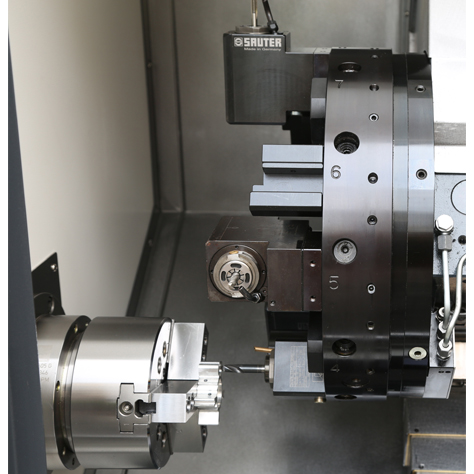

■ JR-S40T: 12T VDI30 Servo powered tool turret and CS axes
